COLLABORATIVE ROBOT ARM
6 axis robot arm mechanical robot arm for 5kg Payload collaborative robot arm

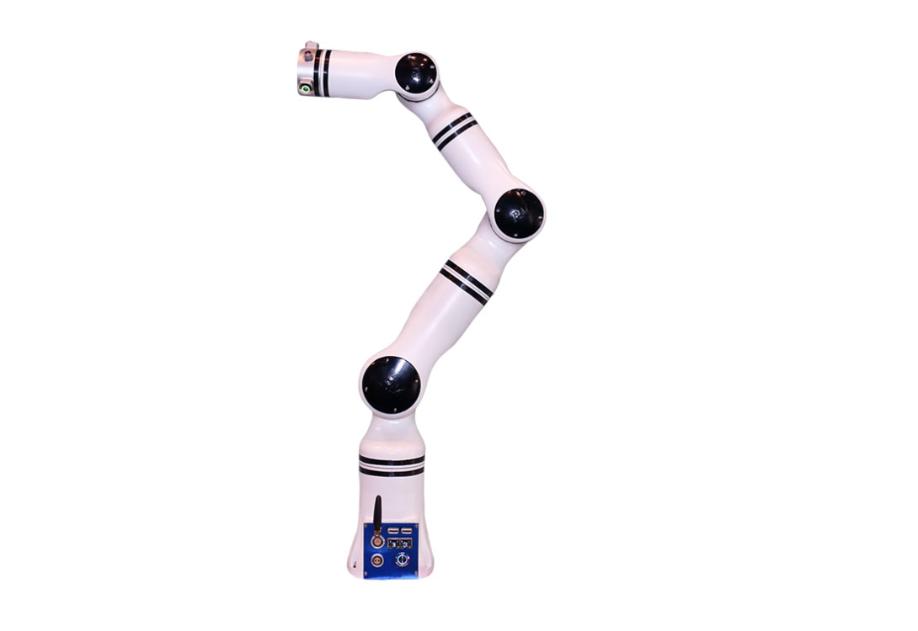

Lightweight 6 Axis collaborative robot
The weight of the humanoid arm: 7.2kg, the payload: 5kg, the load weight ratio is 1:1.44, which ranked the top in the world.At present, the products have been widely used in various fields such as new retail, new catering, commercial services, intelligent inspection, medical health, inspection and quarantine, education and research, industrial manufacture, aerospace and so on.
KEY FEATURES
Ultra-large Load-to-Weight Ratio
Flexible Deployment24V Voltage
Built-in Controller
Strong Compatibility
Open APIs
Wire\Wireless Connection
Integrated Modularity

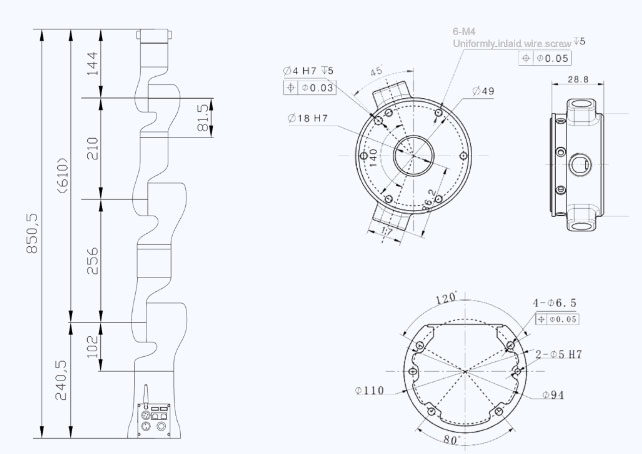

TECHNICAL SPECIFICATION
| No | Item | Data |
| 1 | DoF | 6 |
| 2 | Reach(mm) | 610~850.5 |
| 3 | Payload(kg) | 5 |
| 4 | Weight(kg) | 7.2 |
| 5 | Repeatability (mm) | ±0.05 |
| 6 | Average power (W) | 100 |
| 7 | Peak power (W) | 200 |
| 8 | Material | Aluminum Alloy |
| 9 | Controller | Built-in |
| 10 | Communication | WIFI/Ethernet/Bluetooth/USB/RS485 |
| 11 | Control | Teach-by-dragging/Teach Pendant/API/JSON |
| 12 | Voltage | DC24V |
Ultra-high compatibility, open system
INDUSTRIAL APPLICATIONS
Logistics And Warehousing
Education And Research
Visual Sorting
Medical Care
Aesthetic Physiotherapy
Family Service
Intelligent Inspection
Brain-Computer Control
Working At Heights
Inspection And Quarantine
Industrial Production
Agricultural Picking
Exhibition
New Retail New Catering
