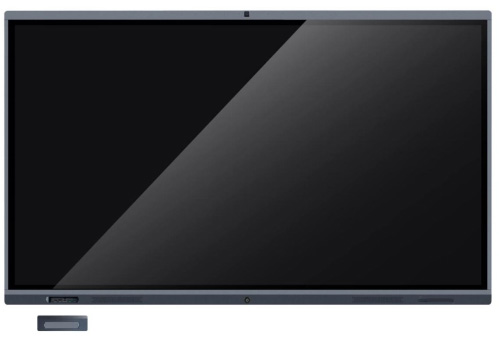

Intervention multimedia touch conference tablet 86"

(0 review)

1. True 4K ultra-high-definition display, zero-fit design, double-sided AG tempered glass, 92% high color gamut;
2. Built-in intelligent core and operating system;
3. Pluggable PC module is optional for the the system ;
4. Touch technology:
5. Integration of display, touch and intelligent core
6. In standby state, HDMI channel signal input intelligently wakes up
7. Support wireless screen sharing function;
8. Support WIFI 6;
9. HDMI supports 4K 60Hz;
10. With the channel memory function, it will enter the homepage by default when it is turned on, and it has the function of custom naming channels;
11. Built-in 12 million HD camera and 8 array microphones;
12. Android 11, 4K UI display, 4K whiteboard;
13. Front USB 3.0 port and TYPE-C port that can be switched with the channel;
14. Support intelligent light sensing to adjust backlight;

S$ 5,999.00 5999.0 SGD S$ 5,999.00

S$ 5,999.00

(S$ 0.00 / Units)

    This combination does not exist.

    1. True 4K ultra-high-definition display, zero-fit design, double-sided AG tempered glass, 92% high color gamut;

    2. Built-in intelligent core and operating system;

    3. Pluggable PC module is optional for the the system ;

    4. Touch technology:

    (1) Anti-light interference (work well in direct sunlight);

    (2) The touch algorithm is highly optimized, the response speed is fast, and the writing and presentation fluency is high;

    5. Integration of display, touch and intelligent core

    (1) HD image processing engine;

    (2) Intelligent display chip, intelligent Android operating system;

    (3) Writing comments is accessible by any channel ;

    6. In standby state, HDMI channel signal input intelligently wakes up

    7. Support wireless screen sharing function;

    8. Support WIFI 6;

    9. HDMI supports 4K 60Hz;

    10. With the channel memory function, it will enter the homepage by default when it is turned on, and it has the function of custom naming channels;

    11. Built-in 12 million HD camera and 8 array microphones;

    12. Android 11, 4K UI display, 4K whiteboard;

    13. Front USB 3.0 port and TYPE-C port that can be switched with the channel;

    14. Support intelligent light sensing to adjust backlight.



    Display parameters

    Size

    86"

    Response time

    8 milliseconds

    Image scale

    16:9

    Maximum display size

    1897（H）×1068（V）mm

    Resolution

    3840（H）×2160（V）

    Pixel pitch

    0.4935×0.4935 mm

    Refresh frequency

    60Hz

    Chromaticity

    1.07B (10bit)

    Color gamut NTSC(TYP)

    92%

    Contrast (TYP, for different OC,actual contrast may vary )

    1200:1

    Viewing angle

    178°(H/V)

    Backlight type

    DLED

    Screen brightness(TYP)

    ≥400cd/m2

    Life span

    ≥50000 hours

    Audio parameters

    Track

    2.0

    Power

    2 x 15W@ 8Ω

    Camera

    Pixel

    ≥12 million (support 48million - 8000x6000@5fps)

    Quantity

    1

    Location

    Center of top border

    Field angel

    ≥92 centigrade

    Microphone

    Best sound pickup distance

    0-10m

    Quantity

    8 array

    Touch texting system

    Identification principle

    Infrared identification

    Support system

    Windows10/Windows8/Windows7/Windows XP/

    Android/Linux/Mac OS X/Chrome

    Touch points

    20-points touch

    Minimum identifier

    2mm

    Input method

    An opaque object such as a finger or stylus

    Response time

    ＜10 milliseconds

    Touch accuracy

    ±1mm ( above 90% touch area)

    Text height

    TYP 2.5mm（1mm optional）

    Communication mode

    Full speed USB

    Texting screen surface hardness

    7H

    Output coordinates

    32767(W) ×32767(D)

    Built-in System

    System version

    Android 11

    CPU

    Quad-Core A55

    GPU

    Mali-G53 MP2

    RAM

    4GB

    ROM

    32GB

    Wireless

    Wi-Fi

    Version

    IEEE 802.11 ac/b/g/n/a/ax

    Frequency

    2.4GHz/5GHz

    Distance

    12 meters

    Valid input and output ports

    Rear side port

    HDMI IN

    2

    USB 3.0

    2

    TOUCH OUT

    1

    USB 2.0

    1

    RS232

    1

    SPDIF

    1

    Rear Lower port

    RJ45

    2

    AUDIO IN

    1

    AUDIO OUT

    1

    Front port

    HDMI

    1

    USB

    2

    TOUCH

    1

    Type-C

    1

    Optional (HDMI OUT adds rear port)

    HDMI OUT

    1

    VGA

    1

    DP

    1

    TYPE-C

    1

    Optional

    NFC

    1

    Power Parameters

    Input

    100-240V~50/60Hz

    Maximum power

    380W

    Standby power loss

    ≤0.5W

    PC system（Optional）

    PC Type

    Plug-type Intel Core series modular computer

    Configuration

    I5/I7/I9（optional）

    PC port

    80pin OPS-C Standard

    Size & Weight

    Overall Dimension(Length*Width*Thickness）

    1952×1185.3×89.6mm

    Package Dimensions(Length*Thickness*Height）

    2160 x280×1340mm（±10mm tolerance）

    The thickness of the whole machine & wall hanging (The thickness varies due to different wall hanging, and the actual situation shall prevail)

    131.1mm（±3mm tolerance）

    VESA hole dimension（length*width）

    800×400mm

    Wall Mounting Screw Specifications

    M8×25mm

    N.W.（excluding OPS）

    67±1kg

    G.W.

    87±2kg（The optional accessories in the package cause differences, and the actual situation shall prevail）

    Random accessories (if it does not match the actual product, the actual product shall prevail)

    Power cable

    ×1

    Wall hanging

    ×1

    Texting pen

    ×1

    Teaching whip

    ×1

    Certificate of Qualification

    ×1

    Warranty Card

    ×1

    Envirnmental factor

    Operating Temperature

    0℃~40℃

    Operating Humidity

    ≤ 80%RH

    Storage Temperature

    -10℃~60℃

    Storage Humidity

    10%~80%RH

    Altitude

    Below 5000 meters

    Please contact us if you have doubt or other requirement.
